Architecture¶

System overview¶

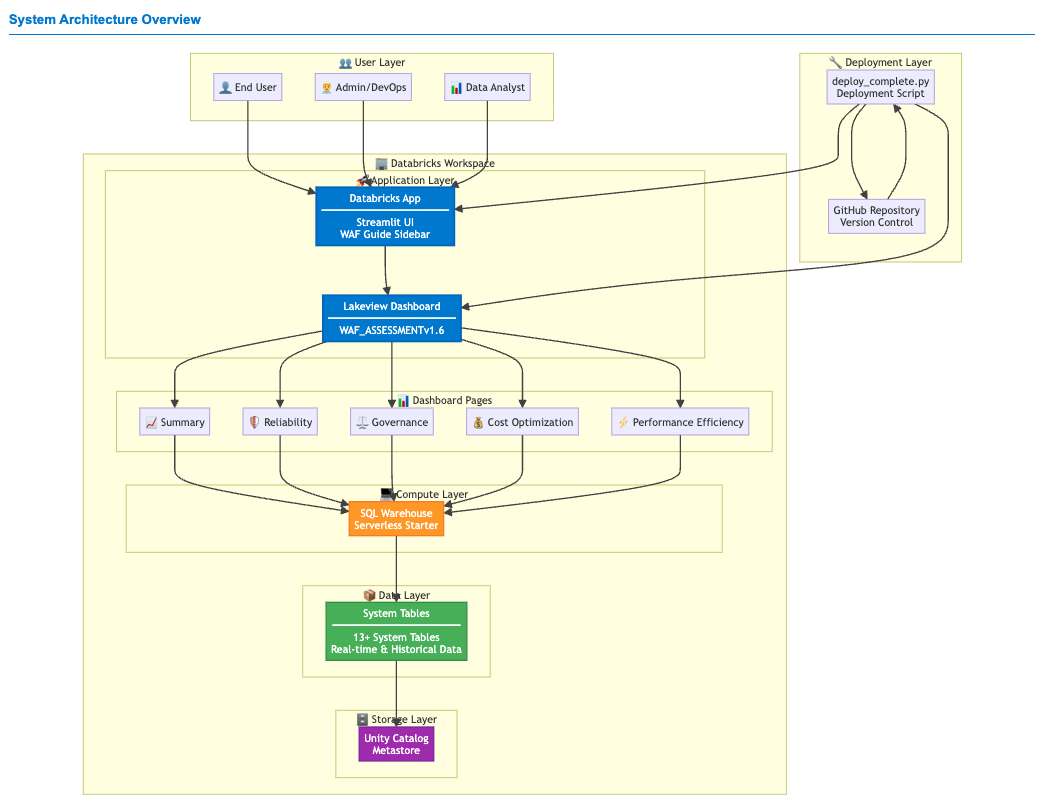

System Architecture

The WAF Light Tooling stack has three layers: a data layer (system tables → waf_cache), an application layer (Databricks App — the central hub that embeds the Lakeview dashboard and surfaces all functionality), and an AI layer (Genie Space).

Component map¶

install.ipynb  (run once, in Databricks)
│
├── Cell 1    User sets CATALOG name
├── Cell 2    Setup: api_url, token, notebook_dir, greenfield checks
├── Cell 3    Ingest waf_controls_with_recommendations.csv → Delta
├── Cell 4    Create Genie Space (15 tables + instructions + SQL examples)
├── Cell 5    Deploy Lakeview dashboard (Genie embedded via overrideId)
├── Cell 6    Publish dashboard with SQL warehouse
├── Cell 7    Configure *.databricksapps.com embedding domain
├── Cell 8    Patch app.py in-memory (DASHBOARD_ID, INSTANCE_URL, WORKSPACE_ID)
├── Cell 9    Upload app files + create WAF Reload Job + deploy Databricks App
├── Cell 10   Grant SP permissions (waf_cache + system.*) + trigger initial reload
├── Cell 11   Installation summary (✅/❌ per step + direct links + access guide)
└── Cell 14   Finalize Genie (SP permission, app.yaml WAF_GENIE_URL, redeploy)

Data flow¶

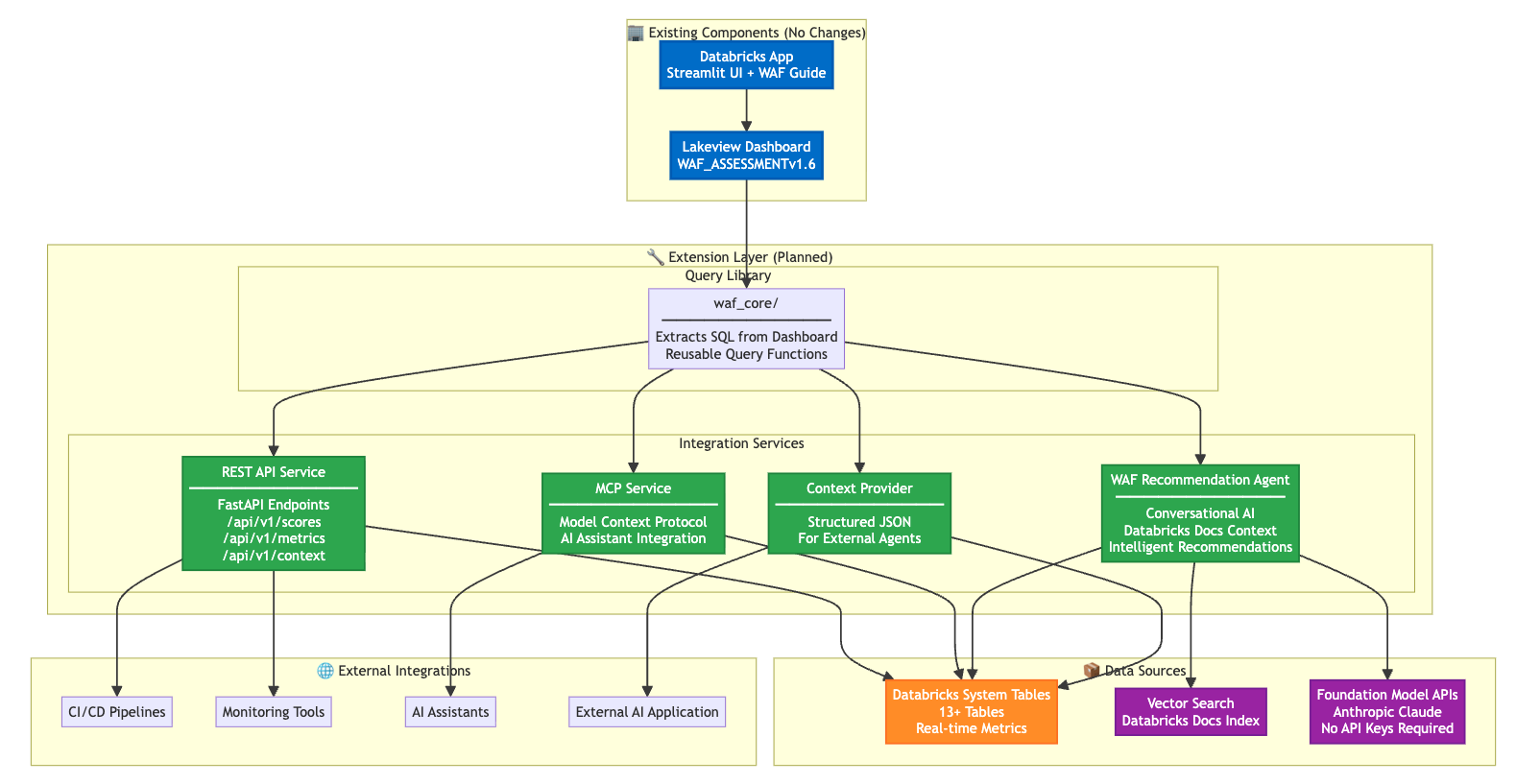

Data Flow

Databricks System Tables
  system.billing.usage
  system.compute.clusters          WAF Reload Job (Databricks Job)
  system.compute.warehouses   ──►  waf_reload.py notebook
  system.access.audit              │
  system.query.history             │  writes to
  system.information_schema.tables │
  system.mlflow.experiments_latest ▼
                              {catalog}.waf_cache
                                waf_controls_c/p/g/r
                                waf_principal_percentage_*
                                waf_total_percentage_*
                                waf_total_percentage_across_pillars
                                waf_controls_with_recommendations
                                waf_recommendations_not_met (VIEW)
                                        │
                              ┌─────────┼──────────────────┐
                              ▼         ▼                   ▼
                     Lakeview        Databricks         Genie Space
                     Dashboard       App (App)          AI Assistant

User flow¶

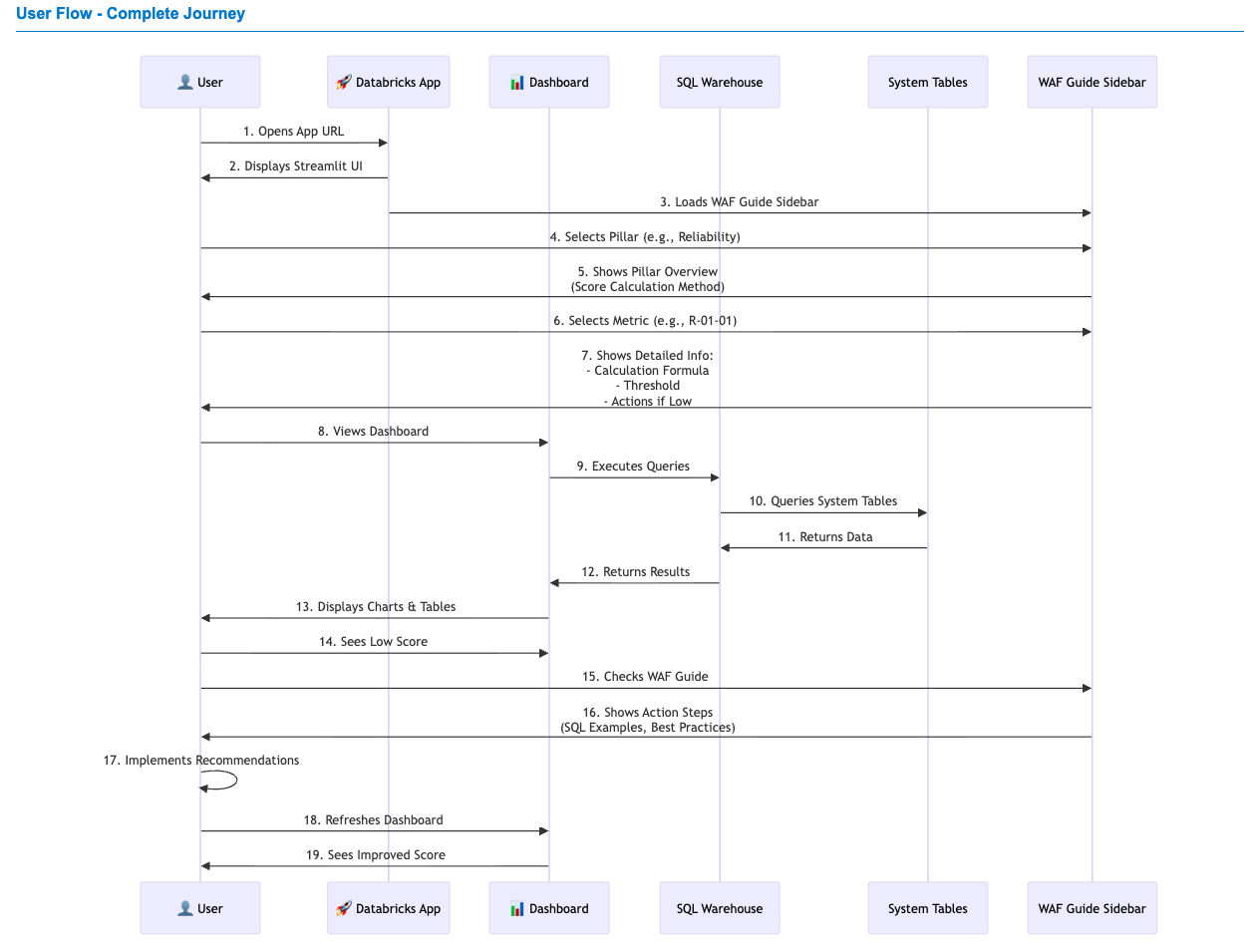

User Flow

User interaction flow¶

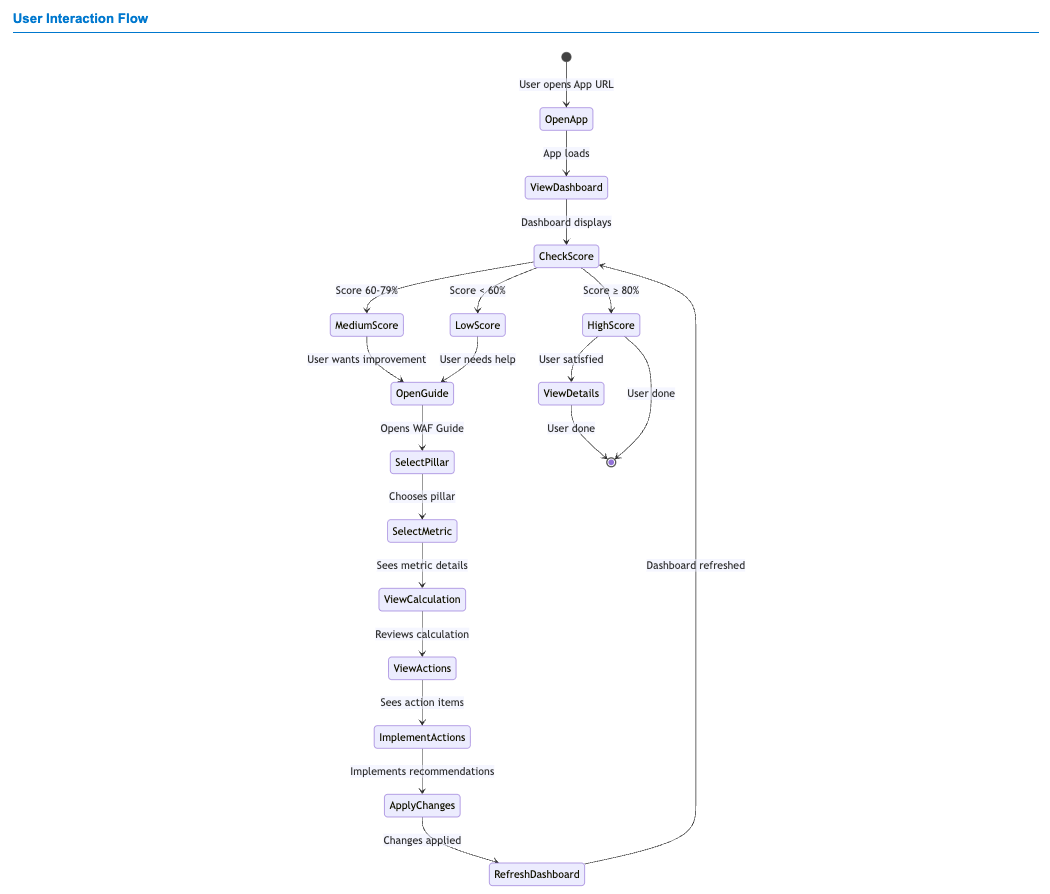

User Interaction Flow

Key technical decisions¶

Decision	Reason
`uiSettings.overrideId` to link Genie	Not a public API — reverse-engineered from a manually-linked dashboard. `spaceId` and `PAGE_TYPE_GENIE` both fail silently.
`notebook_dir` from `ctx.notebookPath()`	`os.getcwd()` returns `/databricks/driver/` when the notebook is uploaded directly (not in a Repo). Context path is always correct.
`nbformat_minor: 5` + cell `id` fields	Databricks notebook loader requires this. Older format causes "Notebook failed to load".
Genie Space created before dashboard	`genie_space_id` must exist to embed in the dashboard template at creation time.
Initial reload triggered at install-end	Data loads in background so it's ready when the user first opens the app.

waf_cache schema¶

All WAF scores are cached in {catalog}.waf_cache and refreshed on each reload run. The schema is created by the installer.

Table / View	Type	Description
`waf_controls_c`	Table	Cost Optimization control scores
`waf_controls_p`	Table	Performance Efficiency control scores
`waf_controls_g`	Table	Governance control scores
`waf_controls_r`	Table	Reliability control scores
`waf_principal_percentage_c`	Table	Cost scores per principal
`waf_principal_percentage_p`	Table	Performance scores per principal
`waf_principal_percentage_g`	Table	Governance scores per principal
`waf_principal_percentage_r`	Table	Reliability scores per principal
`waf_total_percentage_c`	Table	Total Cost score
`waf_total_percentage_p`	Table	Total Performance score
`waf_total_percentage_g`	Table	Total Governance score
`waf_total_percentage_r`	Table	Total Reliability score
`waf_total_percentage_across_pillars`	Table	Aggregated cross-pillar summary
`waf_controls_with_recommendations`	Table	Recommendations catalog (from CSV)
`waf_recommendations_not_met`	View	Failing controls joined with recommendations

Authentication¶

The installer uses the Databricks notebook context for all API calls — no API keys or personal tokens are hardcoded. The app runs as a Service Principal created by Databricks Apps, with permissions granted automatically in Cell 10.
